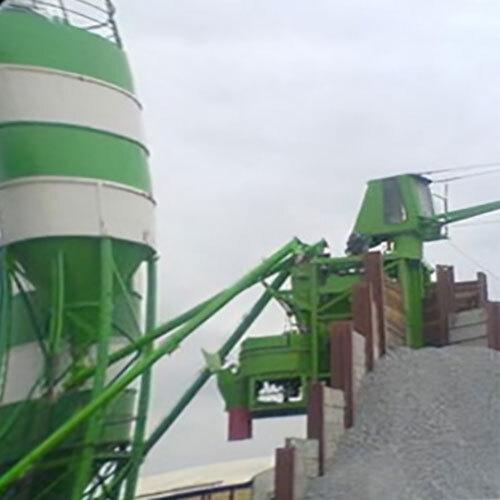

Readymix Concrete Silos

1

100 TON CEMENT SILO DM 100T
1. all shells 5 mm TATA sheet.
2. silo leg 8"Dia 6mm thickness round pipe.
3. lader and hand rails
4. metrical loading pipe 4".
5, air out 3" round pipe.
6.full painting.

2

SILO ACCESSORIES.
1, Butterfly valve with double flange.
2, Pressure relief valve.
3, pneumatic vibration pad.

3

50HP Bulker unloading compressor capacity 950m3/hr pressor:8-9kg/cm2, RPM-1550 machine shaft power 32 kw, 50 HP 1440 RPM motor 3 phase ACCESSORIES-SUCTION SILENCER, DISCHARGE SILENCER, NON-RETURN VALVE. AIR FILTER.BASE FRAME.MOTOR AND MACHINE PULLYS, BELT GUARD, PRESSURE RELIEFV VALVE PRESSURE GAUGE.V BELTS SET.BELKAR UNLOADING SYSTEM MODEL JR22 WITH ALL ACCESSORIES WITH 50 HP LHP/50 CONTROL PANEL WITH 2 NO 4" X4 METER CEMENT FLYASH CONVAYING RUBBER HOSE PIPE WITH FLANGES AND CLAMPS

4

Dust collector.
DUST COLLECTOR, vibratory type. Floor mounted. filtration area: 23m2.polyester non-woven cartridge hopper with three inlet port butterfly valve cartridge with manual hand leaver 2.2 kw blower set

5

Da 219 mm screw conveyor 30 meters long fitted with gear box and 7.5 HP motor for conveying flyash

6

Dia 150 mm screw conveyor 30 meter long fitted with gear box and 7.5 HP motor

TOTAL

Total
IGST 18% OR CGST 9% SGST9 %
GRAND TOTAL
RUPEES TWENTY-SIX LAKS THIRTY-ONE THOUSAND FOUR HUNDERD ONLY
