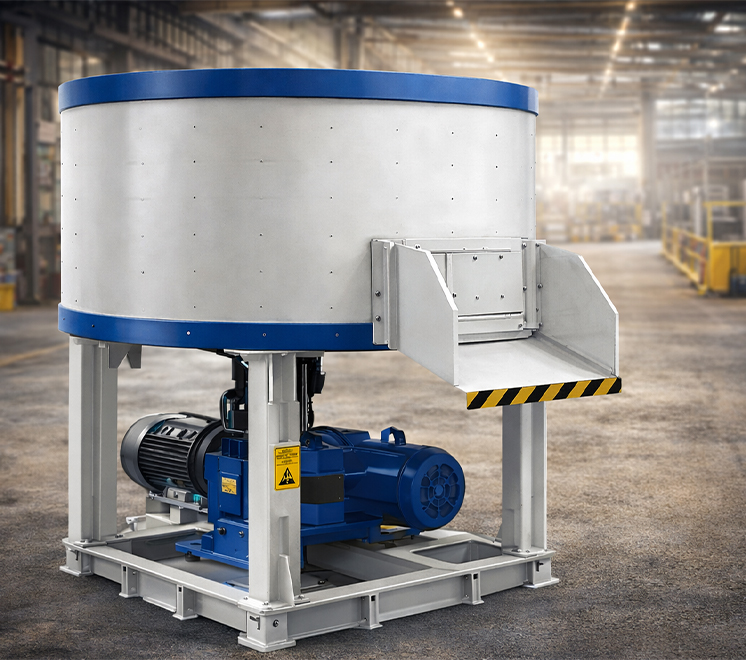

Pan Mixer Machine 500KG Capacity Pan Mixer Machine 500KG Capacity
Pan Mixer Machine 500KG Capacity
Pan Mixer Machine 500KG Capacity

Pan Mixer Machine 500KG Capacity

50000 INR/Unit

Product Details:

  • Surface Paint Coated / Powder Coated
  • Application Construction, Block Making, Fly Ash Brick Plants
  • Lifting Speed Manual or Hydraulic (As applicable)
  • Rated Power 7.5 - 10 HP
  • Motor Power 7.5 HP to 10 HP (varies model-wise)
  • Lifting Height Not applicable for Pan Mixer
  • Product Type Pan Mixer Machine
  • Click to View more
X

Pan Mixer Machine 500KG Capacity Price And Quantity

  • 1 Unit
  • 50000 INR/Unit

Pan Mixer Machine 500KG Capacity Product Specifications

  • Uniform Mixing, High Strength Drum, Heavy-duty Gearbox
  • Approx. 2.0 m 1.6 m 1.8 m
  • 7.5 - 10 HP
  • Paint Coated / Powder Coated
  • Custom/Standard Industrial (Blue, Orange, Grey)
  • Horizontal Construction Mixer
  • 7.5 HP to 10 HP (varies model-wise)
  • No
  • Mild Steel/ Cast Iron Construction
  • Semi-automatic / Manual
  • Manual or Hydraulic (As applicable)
  • Air Cooled
  • Approx 1200 - 1500 KG (model dependent)
  • Batch Mixer
  • 500 KG per batch
  • Pan Mixer Machine
  • Mixing concrete, mortar, fly ash, and construction materials
  • Manual/Starter Based Electric Panel
  • Not applicable for Pan Mixer
  • 415V, 3 Phase
  • Construction, Block Making, Fly Ash Brick Plants
  • Alloy Steel / Abrasion-Resistant Steel
  • Starter, Safety Cover, Maintenance Toolkit
  • 8 mm - 10 mm (Drum Plate)
  • Heavy-duty Reduction Gearbox
  • Heavy Steel Section Base
  • 10 mm - 12 mm
  • Stationary (Standard), Optional Wheeled Base
  • Less than 80 dB
  • 2 to 4 (Model Dependent)
  • Bottom Discharge with Sluice Valve or Side Discharge
  • 18 - 25 RPM (Approx.)
  • Electric Motor
  • 2 - 4 Minutes
  • Digital Batch Counter, Water Metering System, Hydraulic Trolley

Pan Mixer Machine 500KG Capacity Trade Information

  • 30 Unit Per Month
  • 1 Week

Product Description

Special Type Pan Mixing Machine with Solenoid Control Pneumatic Door System fitted with Rossi (Italy) high efficiency Bevel Helical Gear Box and 15 H.P Motor.

Specifications for Pan Mixer

Capacity 500 Kgs
Drum Height 600 x 1600mm
Total Height 1600mm
Inner Liner 6 x 2000mm
Bottom Ware Plate 6mm : 4 no;s
Bottom Ware Plate 16mm
Side Plate 200 x 6mm
Main Housing Rod 100mm
Tapper Roller Bearing 2 no`s
Thrust Bearing 1 no
Mixing Blade Arms 2 no`s. MS Plates with High Carbon Tips
Mixer Roller 200 x 400mm : 2 no`s. Graded Cast Iron
Cast Iron Rollers 2 no`s
V-6 Type Gear Box 1:40 Ratio
Oil Capacity SEA-300. 10 liters
Motor 20 H.P. 1440 RPM
Belt Drive Foot Mounted
Total Weight 3.5 Tons




Built to Last for Heavy-Duty Mixing

This pan mixer offers a sturdy construction using mild steel and cast iron, with high-strength drum and bottom plates, making it ideal for rigorous use in construction environments. Heavy-duty gearbox and alloy steel blades ensure long-lasting performance, even with abrasive materials. Powder-coated or painted finishes protect against corrosion, extending service life.


Exceptional Mixing Performance & Versatility

With a 500 KG mixing capacity and 2 to 4 mixing arms, this mixer guarantees fast, homogeneous blending of concrete, mortar, and fly ash. The bottom or side discharge options, along with a sluice valve, provide flexibility in material handling, while the motorized drive (18-25 RPM) ensures efficient and consistent output for block making or fly ash brick plants.


User-Friendly and Safe Operation

Designed with user safety and ease in mind, the machine features a manual or semi-automatic control panel, an included starter, safety cover, and maintenance kit. Mobility options and digital systems for batch counting and water metering (on request) enhance productivity while maintaining a noise level below 80 dB for a better working environment.

FAQ's of Pan Mixer Machine 500KG Capacity:


Q: How does the pan mixer achieve uniform mixing for construction materials?

A: Uniform mixing is accomplished through 2 to 4 strategically arranged alloy or abrasion-resistant mixing arms within a high-strength drum, rotating at approximately 18-25 RPM. The design ensures materials are thoroughly blended, resulting in consistent concrete or mortar quality per batch.

Q: What materials can be processed in this 500KG pan mixer?

A: This mixer is suitable for a wide range of construction materials, including concrete, mortar, fly ash, and aggregates, making it ideal for use in block making and fly ash brick production plants.

Q: Where is the Pan Mixer Machine typically installed or used?

A: The standard stationary design is perfect for construction sites, block making units, and fly ash brick plants. For enhanced mobility, an optional wheeled base is available, adapting the machine to different operational areas within your facility.

Q: When should I consider using a pan mixer over other mixing methods?

A: A pan mixer is recommended when uniform mixing and rapid batch turnaround (2-4 minutes) are required, especially when processing dense, heavy, or abrasive materials for construction and manufacturing projects.

Q: What are the main benefits of bottom discharge with a sluice valve or side discharge design?

A: Both discharge options allow quick, controlled emptying of mixed material. The bottom discharge with sluice valve is ideal for direct collection into trolleys, while the side discharge provides flexibility based on workflow and site requirements.

Q: How is the pan mixer operated and controlled?

A: Operation is straightforward via a manual or starter-based electric panel. The machine is semi-automatic or manual depending on the model, offering reliable control and basic automation for batching.

Q: What maintenance and safety features come with this pan mixer?

A: Standard safety and maintenance equipment includes a starter, safety cover, and maintenance toolkit. The drum and mixing components are engineered for longevity, while noise levels are kept below 80 dB for operator comfort.
