15 Bricks Fly Ash Making Machine

Get a Price/Quote

Product Details:

Product Type Fly Ash Brick Making Machine
General Use Manufacturing Fly Ash Bricks
Material Mild Steel
Capacity 3000 - 4000 bricks/hour
Weight (kg) 3800 kg
Type Automatic
Computerized Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

15 Bricks Fly Ash Making Machine Price And Quantity

Minimum Order Quantity 1 Unit

15 Bricks Fly Ash Making Machine Product Specifications

Automatic Yes
Type Automatic
Minimum Height 70 mm
Vibration Frequency 4500 - 5000 rpm
Material Mild Steel
Method Hydraulic Pressure
Weight (kg) 3800 kg
Voltage 415 V
Computerized Yes
Machine Power 20 HP
Maximum Height 230 mm
Product Type Fly Ash Brick Making Machine
PLC Control Yes
Feature Energy Efficient, Low Maintenance, Robust Construction
Pallet Size 900 x 560 mm
Dimension (L*W*H) 3700 x 1800 x 2300 mm
Color Blue & Grey
Capacity 3000 - 4000 bricks/hour
General Use Manufacturing Fly Ash Bricks
Maximum Pressure 100 - 120 Ton
Number of Bricks 15 per cycle
Vibration Type Heavy Vibration

15 Bricks Fly Ash Making Machine Trade Information

Supply Ability 3 Unit Per Month
Delivery Time 20 Days

Product Description

We are renowned in this domain as the prime manufacturer, exporter and supplier of optimum quality 15 Bricks Fly Ash Making Machine Pallet Type. The offered machine is manufactured under the stern vigilance of our skilled professionals using quality-approved components and state of art techniques. Available in different technical specifications, this machine is ideal for hassle free production of brick in varied designs, shapes and sizes. Further, we provide this 15 Bricks Fly Ash Making Machine Pallet Type to our client at the most competitive prices.

Key Features:

Easy to install and operate
Sturdy construction with hydraulic system
Impact and corrosion resistance
Ideal for high speed operations

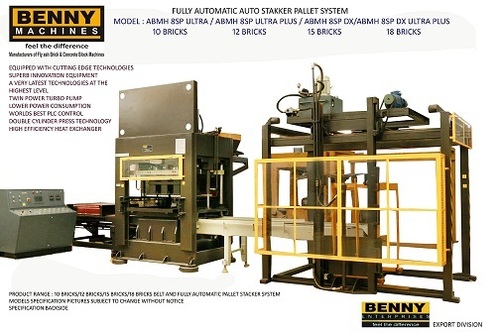

MODEL - ABMH 8 SP SUPER ULTRA AUTO STACKER PALLET SYSTEM HEAVY PRESSING.

Hydraulic Motor	15 H.P./11.25 KW
Brick Eject Motor	1 H.P./0.75 KW
Heat Exchanger	1 H.P./0.75 KW
Conveyor System	3 H.P./2.25 KW
Pan Mixer Machine	20 H.P./15 KW
Hopper Vibrator	0.5 H.P./ 0.375 KW
Hydraulic Stacker Motor	3 H.P./2.25 KW
Stacker Travel Motor	3 H.P./2.25 KW
Pallet Chain Conveyor	1 H.P. 0.75 KW
System	Hydraulic Free Fill
Dimension	H-2800 x W-1500 x L-3000
Weight	9500 KG
Fully PLC Control
Sliding Rod	OD 63 EN8 Grinded Hard Chromed
No: of Cylinders	6 No`s
Sliding Bush	Steel Casting
Main Cylinder	OD 200 x 350 x 160
Side Cylinder	OD 80 x 50 x 350
Ejector Cylinder	50 x 35 x 1100
Max Pressure	220 + 220 = 440 BAR
Hydraulic Pump	Twin Turbo Vain System
Cycle Time	15 seconds
Ejector Conveyor	Tough Polymer. Easy Changeable

Exceptional Productivity and Efficiency

Capable of manufacturing 30004000 bricks per hour, this automatic machine uses hydraulic pressure and heavy vibration for consistent results. Its energy-efficient engine (20 HP) and rapid cycle time maximize daily output, making it ideal for industrial-scale brick production.

Adaptable and Robust Construction

Designed for versatility, the machine produces bricks of custom sizes, with height ranges from 70 mm to 230 mm, using a variety of raw materials. The construction features hard chrome plated moulds, a durable mild steel frame, and a heavy-duty digital PLC-controlled panel, ensuring longevity and reliability.

User-Friendly Operation and Maintenance

Installation services are available, and computerized controls streamline operation. The system has a spacious 350-liter hydraulic oil tank, supports easy quarterly maintenance, and operates at low noise levels (<75 dB), ensuring an optimal working environment.

FAQs of 15 Bricks Fly Ash Making Machine:

Q: How does the 15 Bricks Fly Ash Making Machine operate?

A: This machine uses hydraulic pressure and heavy vibration to form smooth, uniform bricks. The process is fully automatic, managed by a computerized digital panel and PLC control, ensuring precise and efficient operation.

Q: What types of raw materials can be used with this machine?

A: The machine is compatible with fly ash, cement, sand, and stone dust. This versatility allows brick manufacturers to use a range of materials based on local availability and production requirements.

Q: When should I perform maintenance on the machine?

A: Maintenance is recommended on a quarterly basis or as usage demands. Regular upkeep ensures optimal machine performance, longevity, and consistent brick quality.

Q: Where can I get installation and support for this machine?

A: Installation services are offered by the manufacturer or supplier in India. Ongoing support is also provided to assist with setup, operation, and troubleshooting.

Q: What process is used for brick forming?

A: Bricks are produced through a hydraulic pressing method combined with a vibration frequency of 45005000 rpm, delivering a maximum pressure of 100120 tons to achieve a dense and uniform structure.

Q: What are the main benefits of using this automatic fly ash brick making machine?

A: Key benefits include high productivity (up to 4000 bricks/hour), energy efficiency, adaptability to custom brick sizes, robust construction, low maintenance needs, and ease of use through PLC and computerized controls.
