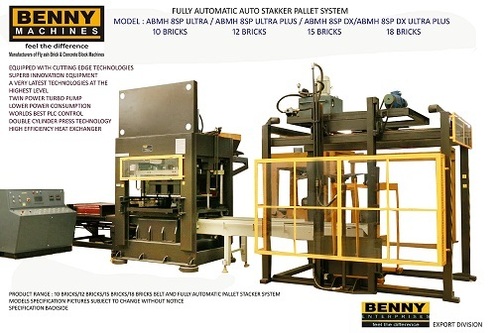

Brick Making Machine Pallet Type

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Brick Making Machine Pallet Type Price And Quantity

Minimum Order Quantity 1 Unit

Brick Making Machine Pallet Type Trade Information

Supply Ability 3 Unit Per Month
Delivery Time 20 Days

Product Description

With the aid of continual research and developmental efforts, we are able to offer the finest quality 10 Bricks Fly ash brick Making Machine Pallet Type. The offered machine is used for making the different kind of fly ash brick for varied construction applications. This machine is manufactured using premium grade components and cutting-edge techniques under the stern observation of our diligent professionals. Further, our valuable client can avail this 10 Bricks Fly ash brick Making machine Pallet Type from us in several technical specifications at the most nominal rates.

MODEL - ABMH 8 SP SUPER ULTRA AUTO STACKER PALLET SYSTEM HEAVY PRESSING.

Hydraulic Motor	15 H.P./11.25 KW
Brick Eject Motor	1 H.P./0.75 KW
Heat Exchanger	1 H.P./0.75 KW
Conveyor System	3 H.P./2.25 KW
Pan Mixer Machine	20 H.P./15 KW
Hydraulic Stacker Motor	3 H.P./2.25 KW
Stacker Travel Motor	3 H.P./2.25 KW
Pallet Chain Conveyor	1 H.P. 0.75 KW
System	Hydraulic Free Fill
Dimension	H-2800 x W-1500 x L-2800
Weight	8500 KG
Fully PLC Control
Sliding Rod	OD 50 EN8 Grinded Hard Chromed
No: of Cylinders	6 No`s
Sliding Bush	Steel Casting
Main Cylinder	OD 200 x 350 x 1100
Side Cylinder	OD 80 x 50 x 350
Ejector Cylinder	OD 50 x 35 x 1100
Max Pressure	220+220=440 BAR
Hydraulic Pump	Turbo Twin System
Cycle Time	15 Seconds
Mould	EN8 RAM and EN24 PUNCH
Ejector Conveyor	Hard Polymer, Easy Changeable
No: of Labour	12 (Only for Production)
Land Required	1 Acre
Shed Size	60` x 100` (Feet)
Water Requirement	10,000 liters per shift
