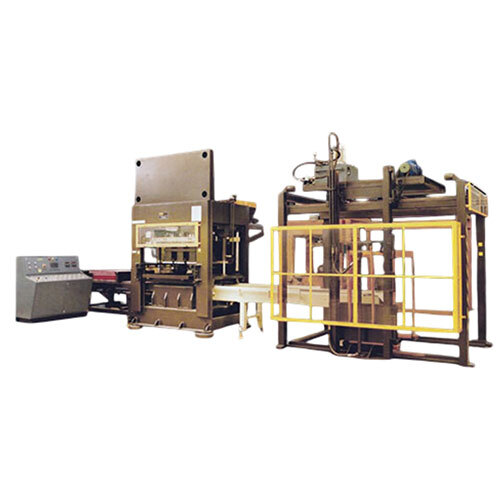

Fully Automatic Auto Stacker Pallet System

2500000.0 INR/Unit

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Fully Automatic Auto Stacker Pallet System Price And Quantity

Price 2500000.0 INR/Unit
Minimum Order Quantity 1 Unit

Product Description

The Fully Automatic Auto Stacker Pallet System is designed to improve efficiency in modern brick manufacturing. Widely used in Coimbatore, this system supports automated stacking for fly ash bricks, concrete blocks, and pavers, reducing manual labor and increasing productivity. Equipped with advanced PLC controls and a strong hydraulic mechanism, it ensures precise handling and uniform stacking of bricks. Its durable structure and high-speed performance help maintain smooth and continuous production. The system integrates easily with automatic brick making machines and paver production units, making it suitable for industrial-scale operations. Ideal for brick manufacturers and construction businesses, it enhances workflow, improves efficiency, and delivers reliable performance in high-volume brick production environments.

Technical Specification

MODEL	MB 3000	MB 6000
Main pressing cylinder	200mm, Stroke 400mm, Rod 150mm -2 Nos	250mm, Stroke 400mm, Rod 160mm -2 Nos
Pilot Cylinder	70mm, Stroke 400mm, Rod 50mm -1 Nos	100mm, Stroke 400mm, Rod 80mm -1 Nos
Ejector Cylinder	50mm, Stroke 350mm, Rod 50mm -2 Nos	100mm, Stroke 350mm, Rod 80mm -2 Nos
System Pressure	240 Bar	280 Bar
Cylinder Pressure	200 x 2 400 Bar Max	200 x 2 400 Bar
Hydraulic Pump	Turbo Twin System	Turbo Twin System
Cycle Time	Flyash Bricks 15 Seconds Concrete Block 16 to 17 Seconds Concrete Paver-17 Seconds-Single feeding	Flyash Bricks 15 to 17 Seconds Concrete Paver Double side Feeding 20 to 25 Seconds Concrete block-15 to 20 Seconds
Mould Capacity	Flyash Bricks-15 Sec Concrete Paver-6, 400x200x200 Concrete Block 2?Nos, 400x200x150 3 Nos ,400x200x150 3 Nos	Flyash Bricks-20, Paver -15, 400x200x200-4Nos, 400x200x150 5 Nos ,400x200x100 8 Nos
Electric Power	Hydraulic Motor-1.5 H.P, Vibrator 6 H.P, Heat Exchanger-1 H.P, Hopper vibrator-1/2 H.P, Auto Stacker-6 H,P	Main Hydraulic -25 H.P, Pallet Pusher-5H.P, Heat Exchanger-1 H.P, Vibrator 10H.P, Hopper Vibratore-1/2 H.P, Chain Conveyor-2 H.P, Agitator-% H.P, Pallet Stacker-7 H.P
Compaction	Vibration / Hydraulic	Vibration / Hydraulic
Operating	PLC	PLC
Pallet Size	800x700x20-1800 Nos	25x1100x20-1500 Nos
Hydraulic Oil	Hydraulic Grade-System 68-450b Liters	Hydraulic Grade-System 68-650b Liters
Pan mixer Requirement	500Kg-1 Nos	500Kg-2 Nos
Color Feeding for paver	Hydraulic Automatic	Hydraulic Automatic
